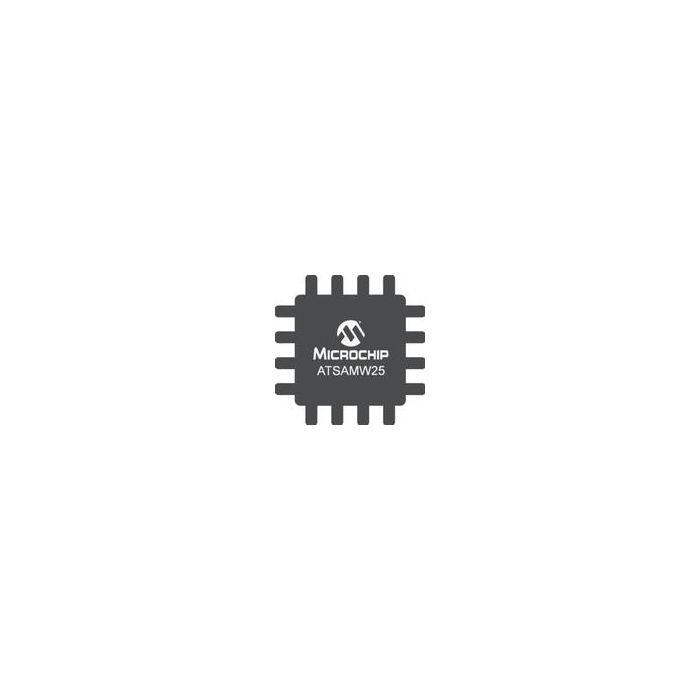

ATSAMW25H18-MR210PB1954

Więcej informacji
Do pobrania	Download
Main description	Module 802.11b/g/n 2.484GHz 72000Kbps 51-Pin Tray

Module 802.11b/g/n 2.484GHz 72000Kbps 51-Pin Tray

Informacje podstawowe

Antenna Mounting On Board
Band Mode Single Mode
Covered Range (m) N/A
ISM Band 2.4GHz
Interface SPI/UART
Maximum Current Consumption (RX) (mA) N/A
Maximum Current Consumption (TX) (mA) N/A
Maximum Data Rate (Kbps) 72000
Maximum Operating Frequency (MHz) 2484
Maximum Operating Supply Voltage (V) 3.6
Maximum Operating Temperature (°C) 85
Maximum Output Power 19.5dBm(Typ)
Maximum Storage Temperature (°C) 125
Minimum Operating Frequency (MHz) 2412
Minimum Operating Supply Voltage (V) 2.7
Minimum Operating Temperature (°C) -40
Minimum Storage Temperature (°C) -40
Modulation Technique CCK|DSSS|OFDM
Number of Channels N/A
Process Technology N/A
Security 802.11i/64bit WEP/128bit WEP/128bit WPA2/AES/TKIP/WAPI/WEP
Solutions ISM
Style Module
Supplier Temperature Grade N/A
Technology IEEE 802.11b/g/n
Typical Operating Supply Voltage (V) 3.3
Typical Power Consumption (mW) N/A
Typical Sensitivity -98dBm@1Mbps|-94dBm@2Mbps|-92dBm@5.5Mbps|-90dBm@6Mbps|-89dBm@9Mbps|-88dBm@11Mbps|-88dBm@12Mbps|-85dBm@18Mbps|-83dBm@24Mbps|-80dBm@36Mbps|-76dBm@48Mbps|-74dBm@54Mbps
Wi-Fi Compliant Yes
