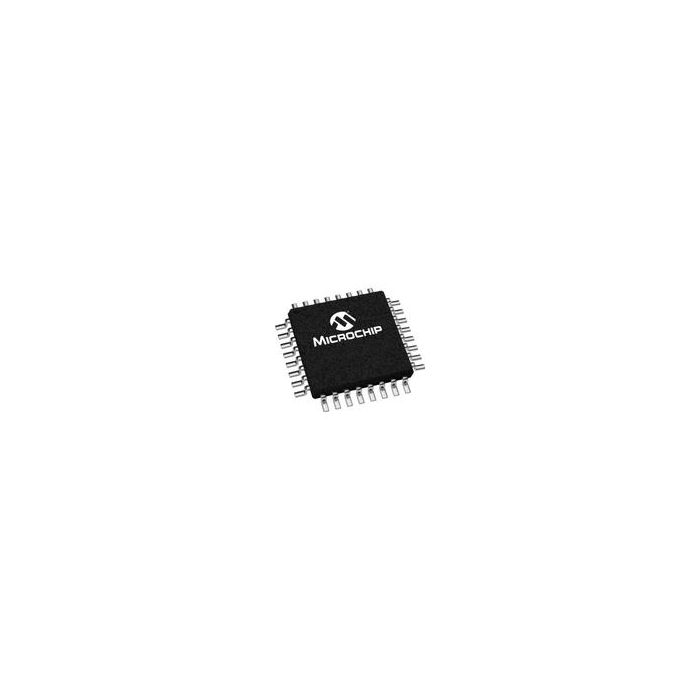

ATmega8A-AU

Powiadom mnie gdy produkt będzie dostępny

Więcej informacji
Do pobrania	Download
Main description	MCU 8-bit AVR RISC 8KB Flash 3.3V/5V 32-Pin TQFP Tray

PARAMETRY PRODUKTU

MCU 8-bit AVR RISC 8KB Flash 3.3V/5V 32-Pin TQFP Tray

Informacje podstawowe

ProducentMicrochip Technology
EURoHSYes (2011/65/EU, 2015/863)
Automotive No

Informacje dodatkowe

Crosses 2
Inventory 12
PCNs 59
GIDEP-Alerts 3
FoundINBOMs 4
MaskPart ATMEGA8AAU%
IntroductionDate May 02, 1997

Parametry

ADC Channels 8
ADC Resolution (bit) 10
Analog Comparators 1
Bluetooth No
CAN 0
CAN Type N/A
Core Architecture AVR
DAC Channels N/A
DAC Resolution (bit) N/A
DDR No
DMA Channels N/A
Data Bus Width (bit) 8
Data Cache Size N/A
Data Memory Size N/A
Device Core AVR
Direct Memory Access No
Display Driver N/A
EEPROM 512B
Encryption Standard N/A
Ethernet 0
Ethernet Interface Type N/A
Ethernet Speed N/A
External Bus Interface No
Family Name ATmega
Floating Point Unit No
Hardware Acceleration N/A
I2C 1
I2S 0
ISM Band N/A
Input Capture Channels N/A
Instruction Cache Size N/A
Instruction Set Architecture RISC
Integrated Development Environment No
Interface Type SPI/TWI/USART
Internal/External Clock Type N/A
LCD Segments N/A
Maximum CPU Frequency (MHz) 16
Maximum Clock Rate (MHz) 16
Maximum Dhrystone MIPS (MIPS) N/A
Maximum Expanded Memory Size N/A
Maximum Operating Supply Voltage (V) 5.5
Maximum Operating Temperature (°C) 85
Maximum Power Dissipation (mW) N/A
Maximum Storage Temperature (°C) 150
Memory Management Unit No
Memory Protection Unit No
Minimum Operating Supply Voltage (V) 2.7
Minimum Operating Temperature (°C) -40
Minimum Storage Temperature (°C) -65
Multiply Accumulate No
Number of ADCs Single
Number of DACs N/A
Number of Programmable I/Os 23
Number of Timers 3
Operating Supply Voltage (V) 3.3|5
Output Compare Channels N/A
PWM 1
Parallel Master Port No
Power On Reset No
Program Memory Size 8KB
Program Memory Type Flash
Programmability Yes
RAM Size 1KB
Real Time Clock No
SPI 1
Solutions N/A
Special Features N/A
Super Scalar No
Supplier Temperature Grade Industrial
Temperature Flag Opr
Temperature Sensor No
Timers Channels N/A
Timers Resolution (bit) 8/8/16
Touch Sensing Interface No
Trace Hardware N/A
Typical Operating Supply Voltage (V) 3.3|5
UART 1
USART 1
USB 0
Watchdog 1
Wi-Fi No
