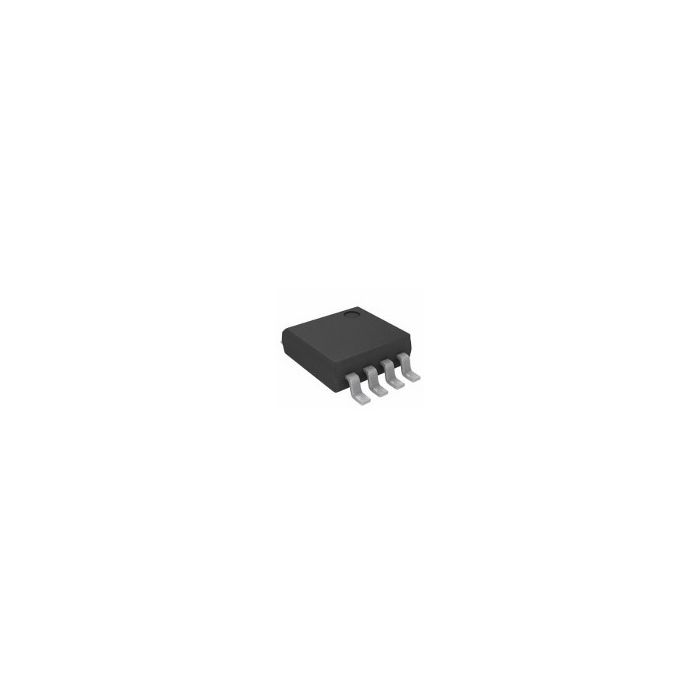

AT45DB321D-SU-2.5
| Do pobrania | Download |
|---|---|
| Main description | NOR Flash Serial-SPI 3.3V 32M-bit 4M x 8 6ns 8-Pin SOIC EIAJ |
NOR Flash Serial-SPI 3.3V 32M-bit 4M x 8 6ns 8-Pin SOIC EIAJ
Informacje podstawowe
- ProducentAdesto Technologies Corporation, Inc
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Unknown
Informacje dodatkowe
- Crosses 69
- PCNs 7
- MaskPart AT45DB321DSU2.5%
- IntroductionDate Oct 01, 2012
Parametry
- Address Bus Width (bit) 22
- Architecture Sectored
- Bank Size N/R
- Block Organization Symmetrical
- Boot Block No
- Cell Type NOR
- Command Compatible No
- Density (bit) 32M
- Density in Bits (bit) 33554432
- ECC Support No
- Erase Suspend/Resume Modes Support No
- Interface Type Serial-SPI
- Location of Boot Block N/R
- Maximum Access Time (ns) 6
- Maximum Erase Time (s) 0.1/Block
- Maximum Page Access Time (ns) N/R
- Maximum Programming Time (ms) 6/Page
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -65
- Number of Banks N/A
- Number of Bits per Word (bit) 8
- Number of Words 4M
- OE Access Time (ns) N/A
- Page Read Current (mA) N/R
- Page Size 528byte
- Program Current (mA) 17
- Programmability Yes
- Programming Voltage (V) 2.5 to 3.6
- Sector Size 64Kbyte x 64
- Simultaneous Read/Write Support No
- Supplier Temperature Grade Industrial
- Support of Common Flash Interface No
- Support of Page Mode No
- Timing Type Synchronous
