AT45DB041B-RU-2.5
| Do pobrania | Download |
|---|---|
| Main description | Flash Serial-SPI 3.3V 4M-bit 25ns 28-Pin SOIC |

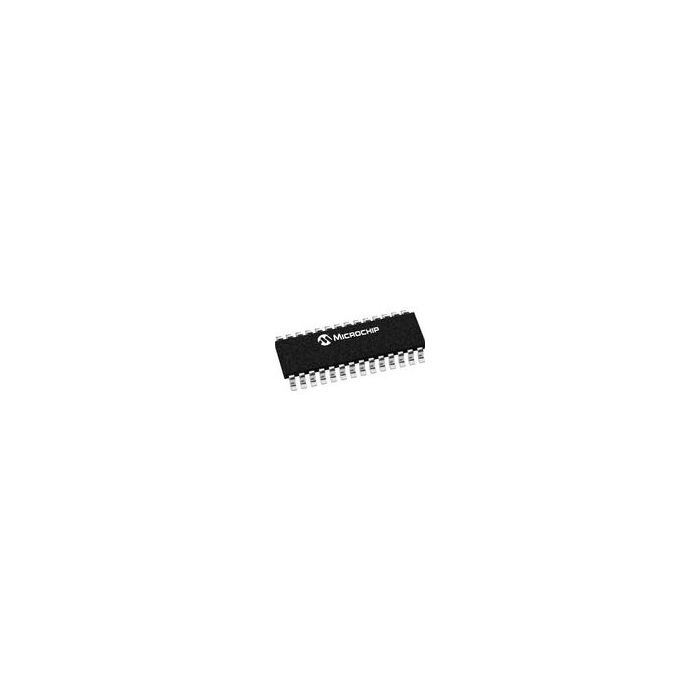

Flash Serial-SPI 3.3V 4M-bit 25ns 28-Pin SOIC
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 5
- PCNs 46
- MaskPart AT45DB041BRU2.5%
- IntroductionDate May 02, 1997
Parametry
- Address Bus Width (bit) 1
- Architecture Sectored
- Bank Size N/R
- Block Organization Asymmetrical
- Boot Block No
- Cell Type N/A
- Command Compatible No
- Density (bit) 4M
- Density in Bits (bit) 4194304
- ECC Support No
- Erase Suspend/Resume Modes Support No
- Interface Type Serial-SPI
- Location of Boot Block N/R
- Maximum Access Time (ns) 25
- Maximum Erase Time (s) 0.012/Block
- Maximum Page Access Time (ns) N/A
- Maximum Programming Time (ms) 14/Page
- Number of Banks N/A
- Number of Bits per Word (bit) N/A
- Number of Words N/A
- OE Access Time (ns) N/A
- Page Read Current (mA) N/A
- Page Size 264byte
- Program Current (mA) 35
- Programmability Yes
- Programming Voltage (V) 2.5 to 3.6
- Sector Size 2Kbyte x 1|62Kbyte x 1|64Kbyte x 1|128Kbyte x 3
- Simultaneous Read/Write Support No
- Supplier Temperature Grade Industrial
- Support of Common Flash Interface No
- Support of Page Mode Yes
- Timing Type Synchronous
