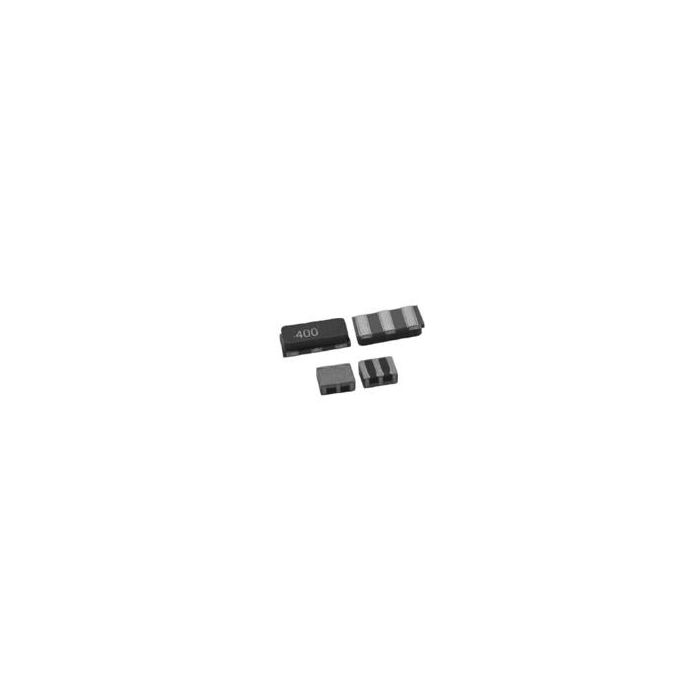

ASCR-4.000MGC-T
| Do pobrania | Download |
|---|---|
| Main description | Ceramic Resonator 4MHz ±0.5% (Tol) ±0.3% (Stability) 30pF 30Ohm 3-Pin SMD T/R |
Ceramic Resonator 4MHz ±0.5% (Tol) ±0.3% (Stability) 30pF 30Ohm 3-Pin SMD T/R
Informacje podstawowe
- ProducentAbracon
- EURoHSUnknown (2011/65/EU)
- Automotive No
Informacje dodatkowe
- Crosses 4
- PCNs 1
- MaskPart ASCR4.000MGC%
Parametry
- Frequency Aging ±0.3%/(10th) Year
- Frequency Stability ±0.3%
- Frequency Tolerance ±0.5%
- Load Capacitance (pF) 30
- Mode of Oscillation N/A
- Module/IC Classification IC
- Resonance Frequency (MHz) 4
- Resonance Resistance (Ohm) 30
- Supplier Temperature Grade N/A
- Temperature Coefficient (ppm/°C) N/R
- Type Ceramic Resonator
