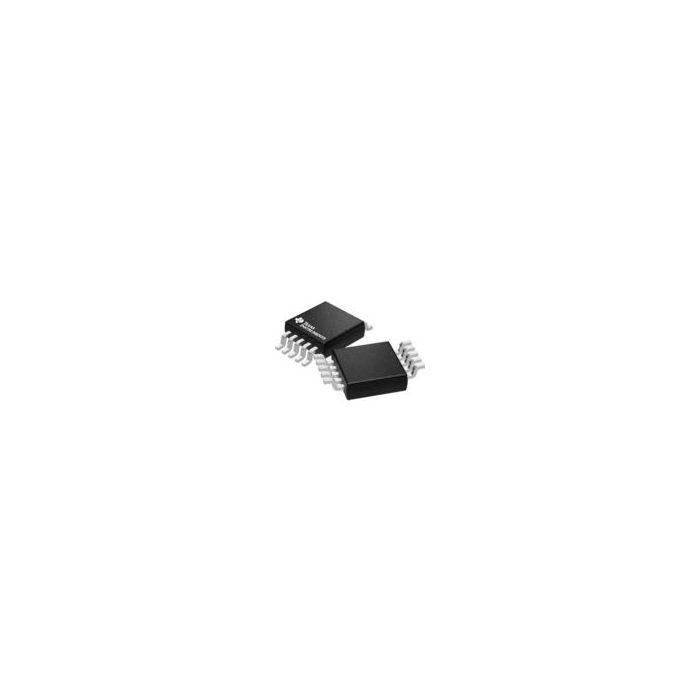

ADS1118IDGSR
| Do pobrania | Download |
|---|---|
| Main description | 4-Channel Single ADC Delta-Sigma 860sps 16-bit Serial 10-Pin VSSOP T/R |
4-Channel Single ADC Delta-Sigma 860sps 16-bit Serial 10-Pin VSSOP T/R
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 7
- Inventory 5
- PCNs 41
- MaskPart ADS1118IDGS%
- IntroductionDate Dec 01, 2010
Parametry
- Architecture Delta-Sigma
- Converter Type General Purpose
- Differential Input Yes
- Differential Nonlinearity N/A
- Digital Interface Type Serial (3-Wire, 4-Wire, SPI)
- Digital Supply Support No
- Full Scale Error 0.15%FSR
- Input Signal Type Single-Ended|Differential
- Input Type Voltage
- Input Voltage ±0.256V/±0.512V/±1.024V/±2.048V/±4.096V/±6.144V
- Integral Nonlinearity Error 1LSB
- Maximum Dual Supply Voltage (V) N/R
- Maximum Power Dissipation (mW) N/A
- Maximum Single Supply Voltage (V) 5.5
- Maximum Storage Temperature (°C) 150
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 2
- Minimum Storage Temperature (°C) -60
- No Missing Codes (bit) 16
- Number of ADCs 1
- Number of Input Channels 4|2
- Polarity of Input Voltage Bipolar
- Resolution 16bit
- Sample and Hold No
- Sampling Rate 860sps
- Signal to Noise Ratio N/A
- Single-Ended Input Yes
- Supplier Temperature Grade N/A
- Typical Dual Supply Voltage (V) N/R
- Typical Power Dissipation (mW) 0.9
- Typical Single Supply Voltage (V) 3.3
- Voltage Reference Internal
- Voltage Supply Source Single
