ADG3257BRQZ
Do pobrania | Download |
---|---|

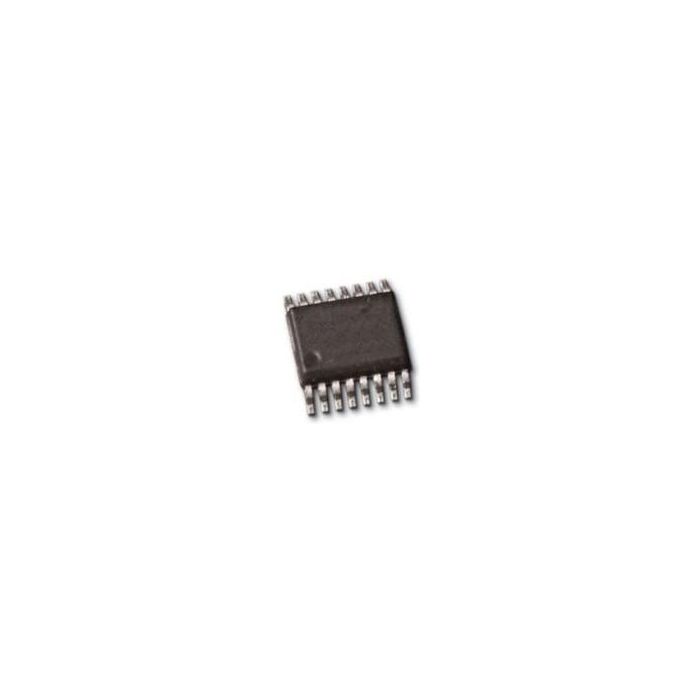

Main description | Multiplexer/Demultiplexer Bus Switch 1-Element CMOS 8-IN 16-Pin QSOP Tube |
Multiplexer/Demultiplexer Bus Switch 1-Element CMOS 8-IN 16-Pin QSOP Tube
Informacje podstawowe
- ProducentAnalog Devices
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 27
- Inventory 6
- PCNs 13
- MaskPart ADG3257BRQZ%
- IntroductionDate Jun 17, 2002
Parametry
- Absolute Propagation Delay Time (ns) 9
- Configuration 4 x 2:1
- Logic Family N/A
- Logic Function Multiplexer/Demultiplexer Bus Switch
- Maximum High Level Output Current (mA) -100
- Maximum Low Level Output Current (mA) 100
- Maximum On Resistance (Ohm) 4(Typ)
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Time @ Maximum CL (ns) 0.1@3.3V to 5V
- Maximum Quiescent Current (uA) 1
- Maximum Supply Current (mA) N/A
- Number of Elements per Chip 1
- Number of Inputs per Chip 8
- Number of Outputs per Chip 4
- Process Technology CMOS
- Propagation Delay Test Condition (pF) 50
- Supplier Temperature Grade Industrial
- Typical Quiescent Current (uA) 0.001
- Typical Supply Current (mA) N/A
