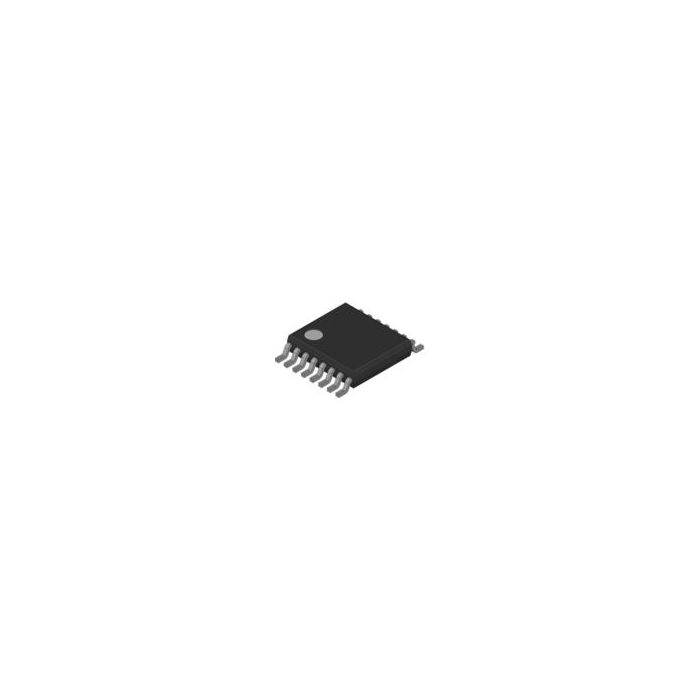

AD7793BRUZ
| Do pobrania | Download |
|---|---|
| Main description | Triple Channel Single ADC Delta-Sigma 470sps 24-bit Serial 16-Pin TSSOP Tube |
Triple Channel Single ADC Delta-Sigma 470sps 24-bit Serial 16-Pin TSSOP Tube
Informacje podstawowe
- ProducentAnalog Devices
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 3
- Inventory 9
- PCNs 6
- MaskPart AD7793BRUZ%
- IntroductionDate Apr 13, 2005
Parametry
- Architecture Delta-Sigma
- Converter Type General Purpose
- Differential Input Yes
- Differential Nonlinearity N/A
- Digital Interface Type Serial (3-Wire, 4-Wire, SPI, QSPI, Microwire)
- Digital Supply Support No
- Full Scale Error ±10uV(Typ)
- Input Signal Type Differential
- Input Type Voltage
- Input Voltage ±2.5V
- Integral Nonlinearity Error ±15ppm of FSR
- Maximum Dual Supply Voltage (V) N/R
- Maximum Positive Supply Voltage (V) 5.25
- Maximum Power Dissipation (mW) N/A
- Maximum Single Supply Voltage (V) 5.25
- Minimum Dual Supply Voltage (V) N/R
- Minimum Positive Supply Voltage (V) 2.7
- Minimum Single Supply Voltage (V) 2.7
- No Missing Codes (bit) 24
- Number of ADCs 1
- Number of Input Channels 3
- Polarity of Input Voltage Bipolar
- Resolution 24bit
- Sample and Hold No
- Sampling Rate 470sps
- Signal to Noise Ratio N/A
- Single-Ended Input No
- Supplier Temperature Grade N/A
- Typical Dual Supply Voltage (V) N/R
- Typical Power Dissipation (mW) N/A
- Typical Single Supply Voltage (V) 3.3|5
- Voltage Reference Internal|External
- Voltage Supply Source Single
