74LVC1G32FX4-7
Do pobrania | Download |
---|---|

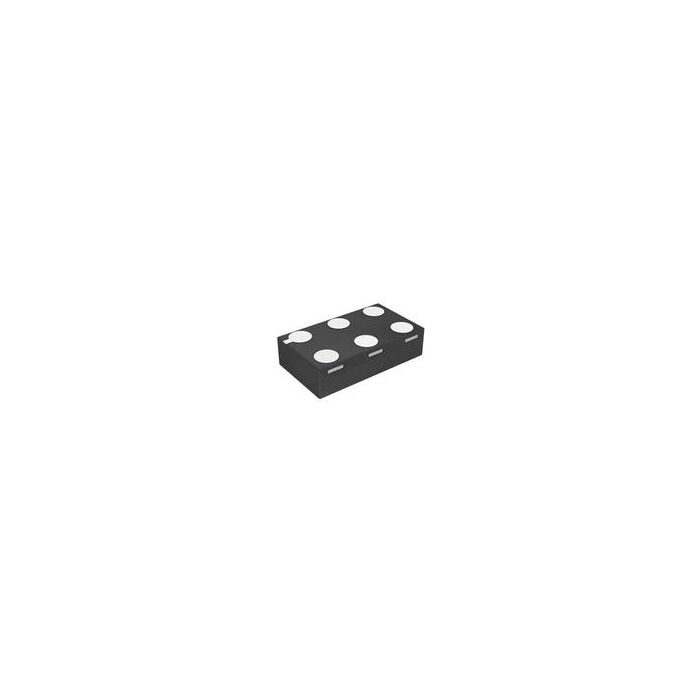

Main description | OR Gate 1-Element 2-IN CMOS 6-Pin X2-DFN T/R |
OR Gate 1-Element 2-IN CMOS 6-Pin X2-DFN T/R
Informacje podstawowe
- ProducentDiodes Incorporated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 19
- PCNs 14
- MaskPart 74LVC1G32FX47%
- IntroductionDate Mar 10, 2014
Parametry
- Absolute Propagation Delay Time (ns) 10.5
- Input Type N/A
- Logic Family LVC
- Logic Function OR
- Maximum High Level Output Current (mA) -32
- Maximum Low Level Output Current (mA) 32
- Maximum Propagation Delay Time @ Maximum CL (ns) 7@2.7V|6@3.3V|5.5@5V
- Maximum Quiescent Current (uA) 200
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) N/A
- Minimum Storage Temperature (°C) -65
- Number of Element Inputs 2-IN
- Number of Element Outputs 1
- Number of Elements per Chip 1
- Number of Output Enables per Element 0
- Number of Selection Inputs per Element 0
- Output Type N/A
- Process Technology CMOS
- Propagation Delay Test Condition (pF) 50
- Supplier Temperature Grade N/A
- Typical Quiescent Current (uA) N/A
- Typical Supply Current (mA) N/A
