74HCT245D,653
| Do pobrania | Download |
|---|---|
| Main description | Bus XCVR Single 8-CH 3-ST 20-Pin SO T/R |

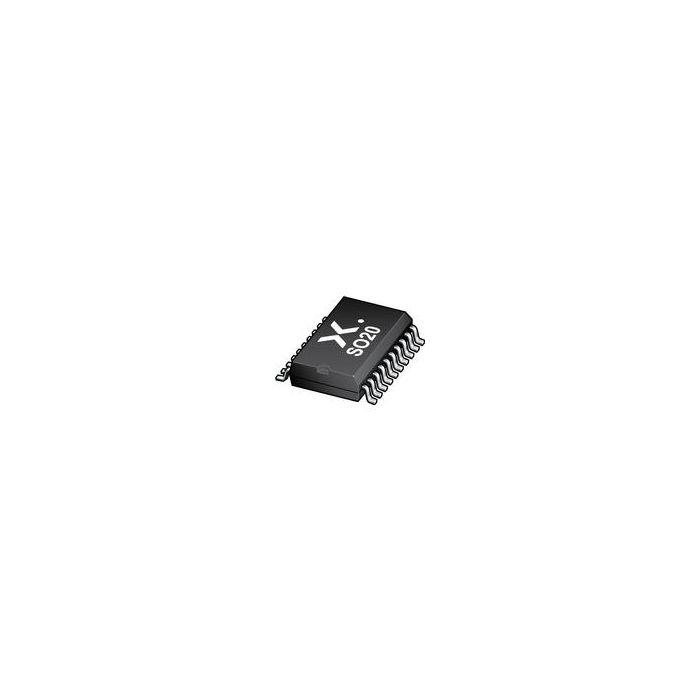

Bus XCVR Single 8-CH 3-ST 20-Pin SO T/R
Informacje podstawowe
- ProducentNexperia
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 43
- Inventory 8
- PCNs 36
- FoundINBOMs 2
- MaskPart 74HCT245D%
- IntroductionDate Sep 01, 1993
- AliasParts 74HCT245D-T933713590653
Parametry
- Absolute Propagation Delay Time (ns) 45
- Bus Hold No
- Data Flow Direction Bi-Directional
- Input Level TTL
- Logic Family HCT
- Logic Function Bus Transceiver
- Maximum High Level Output Current (mA) -6
- Maximum Low Level Output Current (mA) 6
- Maximum Power Dissipation (mW) 500
- Maximum Propagation Delay Time @ Maximum CL (ns) 22@4.5V
- Maximum Quiescent Current (uA) 8
- Maximum Supply Current (mA) N/A
- Number of Channels per Chip 8
- Number of Direction Control Inputs 1 Low/High
- Number of Elements per Chip 1
- Number of Input Enables per Element 0
- Number of Output Enables per Element 1 Low
- Number of Selection Inputs per Element 0
- Output Level CMOS
- Output Type 3-State
- Polarity Non-Inverting
- Process Technology CMOS
- Propagation Delay Test Condition (pF) 50
- Supplier Temperature Grade N/A
- Tolerant I/Os (V) N/A
- Triggering Type N/A
- Typical Quiescent Current (uA) N/A
- Typical Supply Current (mA) N/A
