74HC257D,653
| Do pobrania | Download |
|---|---|
| Main description | Multiplexer 1-Element CMOS 3-ST 8-IN 16-Pin SO T/R |

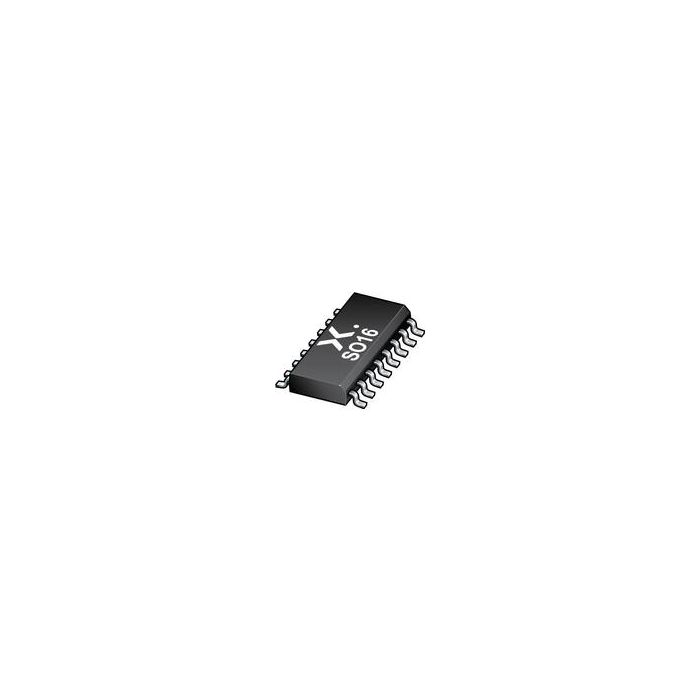

Multiplexer 1-Element CMOS 3-ST 8-IN 16-Pin SO T/R
Informacje podstawowe
- ProducentNexperia
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 38
- Inventory 6
- PCNs 32
- MaskPart 74HC257D%
- IntroductionDate Sep 01, 1993
- AliasParts 74HC257D-T933713640653
Parametry
- Absolute Propagation Delay Time (ns) 225
- Configuration 4 x 2:1
- Input Signal Type Single-Ended
- Logic Family HC
- Logic Function Multiplexer
- Maximum Dual Supply Voltage (V) N/R
- Maximum Frequency (MHz) N/A
- Maximum High Level Output Current (mA) -7.8
- Maximum Low Level Output Current (mA) 7.8
- Maximum On Resistance (Ohm) N/A
- Maximum Power Dissipation (mW) 500
- Maximum Propagation Delay Time @ Maximum CL (ns) 110@2V|22@4.5V|19@6V
- Maximum Quiescent Current (uA) 8
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) N/A
- Minimum Dual Supply Voltage (V) N/R
- Minimum Storage Temperature (°C) -65
- Number of Elements per Chip 1
- Number of Input Enables per Element 0
- Number of Inputs per Chip 8
- Number of Output Enables per Element 1
- Number of Outputs per Chip 4
- Number of Selection Inputs per Element 1
- Output Signal Type Single-Ended
- Output Type 3-State
- Parity Invert Input No
- Polarity Non-Inverting
- Power Supply Type Single
- Process Technology CMOS
- Propagation Delay Test Condition (pF) 50
- Supplier Temperature Grade N/A
- Tolerant I/Os (V) N/A
- Typical Quiescent Current (uA) N/A
- Typical Supply Current (mA) N/A
