74AUP1G04FZ4-7

Więcej informacji
Do pobrania	Download

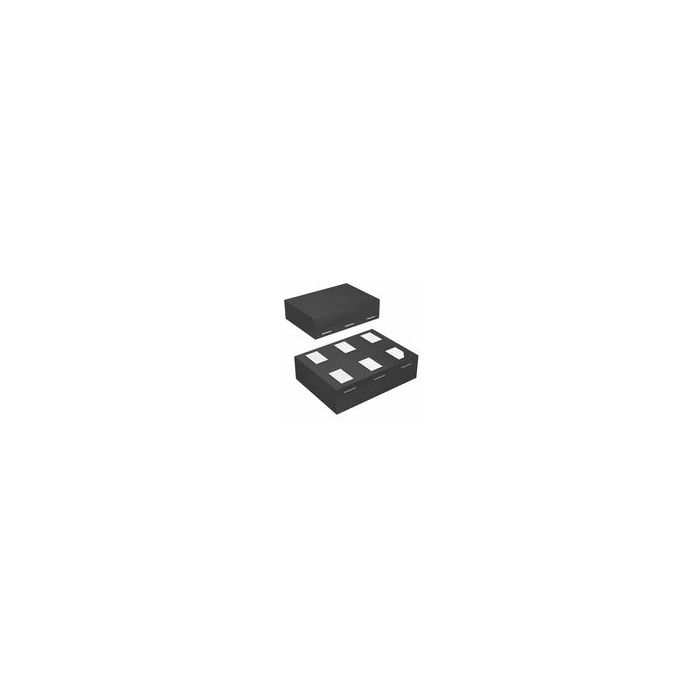

Main description	Inverter 1-Element CMOS 6-Pin X2-DFN T/R

Inverter 1-Element CMOS 6-Pin X2-DFN T/R

Informacje podstawowe

Absolute Propagation Delay Time (ns) 27
Input Type N/A
Logic Family AUP
Logic Function Inverter
Maximum High Level Output Current (mA) -4
Maximum Low Level Output Current (mA) 4
Maximum Operating Supply Voltage (V) 3.6
Maximum Operating Temperature (°C) 125
Maximum Propagation Delay Time @ Maximum CL (ns) 18@1.1V to 1.3V|12@1.4V to 1.6V|9@1.65V to 1.95V|6.5@2.3V to 2.7V|5.4@3V to 3.6V
Maximum Quiescent Current (uA) 0.5
Maximum Supply Current (mA) N/A
Minimum Operating Supply Voltage (V) 0.8
Minimum Operating Temperature (°C) -40
Number of Elements per Chip 1
Output Type N/A
Process Technology CMOS
Propagation Delay Test Condition (pF) 30
Supplier Temperature Grade N/A
Typical Operating Supply Voltage (V) 1.8|2.5|3.3
Typical Quiescent Current (uA) N/A
Typical Supply Current (mA) N/A
