74AHC594T16-13

Więcej informacji
Do pobrania	Download

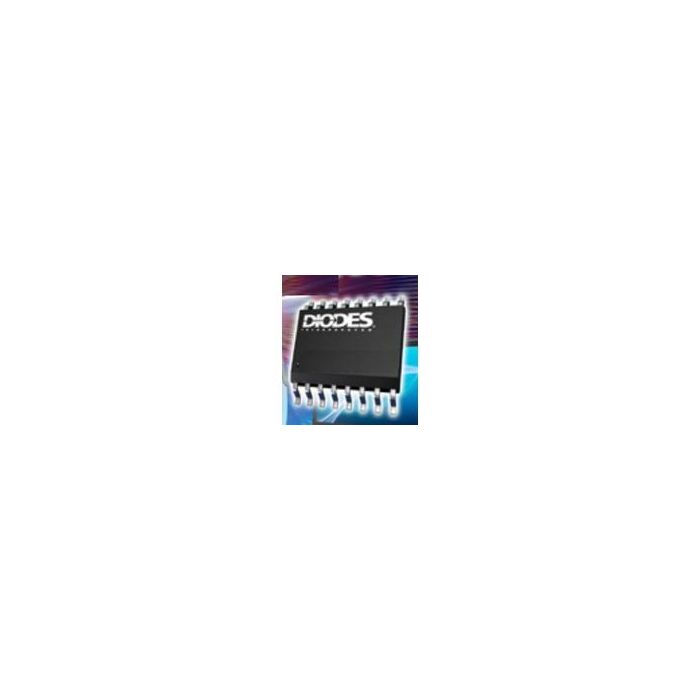

Main description	Shift Register Single 8-Bit Serial to Serial/Parallel 16-Pin TSSOP T/R

Shift Register Single 8-Bit Serial to Serial/Parallel 16-Pin TSSOP T/R

Informacje podstawowe

Absolute Propagation Delay Time (ns) 225
Direction Type Uni-Directional
Logic Family AHC
Logic Function Shift Register
Maximum Operating Supply Voltage (V) 5.5
Maximum Operating Temperature (°C) 125
Maximum Propagation Delay Time @ Maximum CL (ns) 12.1@3V to 3.6V|8.8@4.5V to 5.5V
Maximum Quiescent Current (mA) 0.004
Maximum Storage Temperature (°C) 150
Minimum Operating Supply Voltage (V) 2
Minimum Operating Temperature (°C) -40
Minimum Storage Temperature (°C) -65
Number of Count Input Enables 0
Number of Element Inputs 1
Number of Element Outputs 9
Number of Elements per Chip 1
Number of Selection Inputs per Element 0
Number of Stages 8
Operation Mode Serial to Serial/Parallel
Output Type N/A
Parallel Enable Input No
Preset Type N/A
Process Technology CMOS
Propagation Delay Test Condition (pF) 50
Reset Type N/A
Supplier Temperature Grade N/A
Terminal Count Output No
Tolerant I/Os (V) N/A
Triggering Type Positive-Edge
Type N/R
Typical Operating Supply Voltage (V) 2.5|3.3|5
